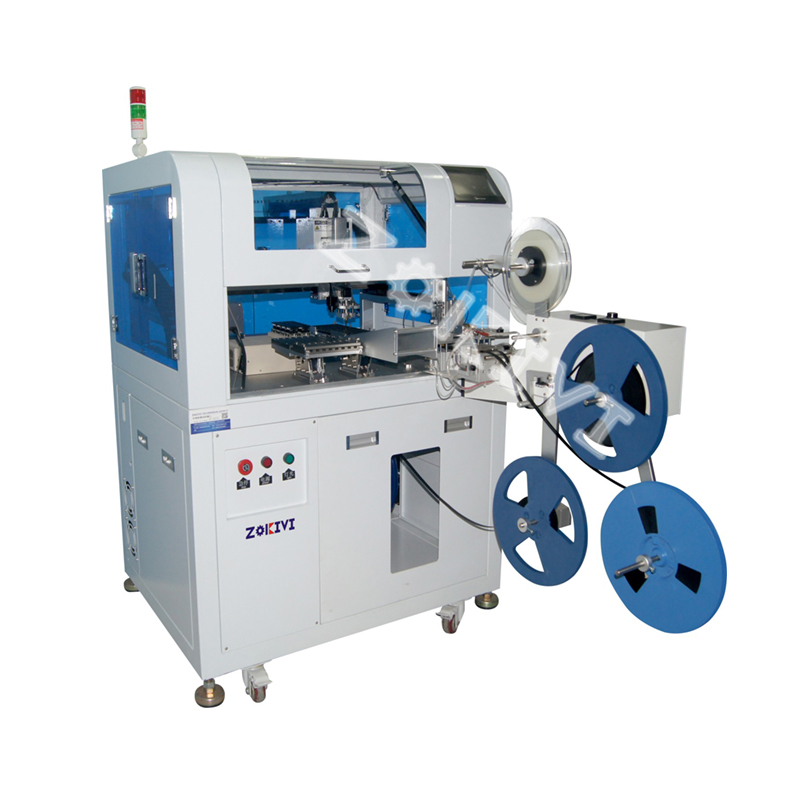

ZL808-C

Universal two-in-one, supporting braiding, piping two packaging IC burning/testing, marking and packaging conversion functions.

External braiding system supports 8-32MM wide-band adjustable, convenient and fast. Braided piping supports interchangeable packaging.

Taping can be equipped with dotting system, marking function on the chip surface to facilitate production management.

It can be equipped with high-definition up and down CCD, automatic alignment of IC coordinates, automatic adjustment of X, Y and theta parameters, automatic correction of offset data.

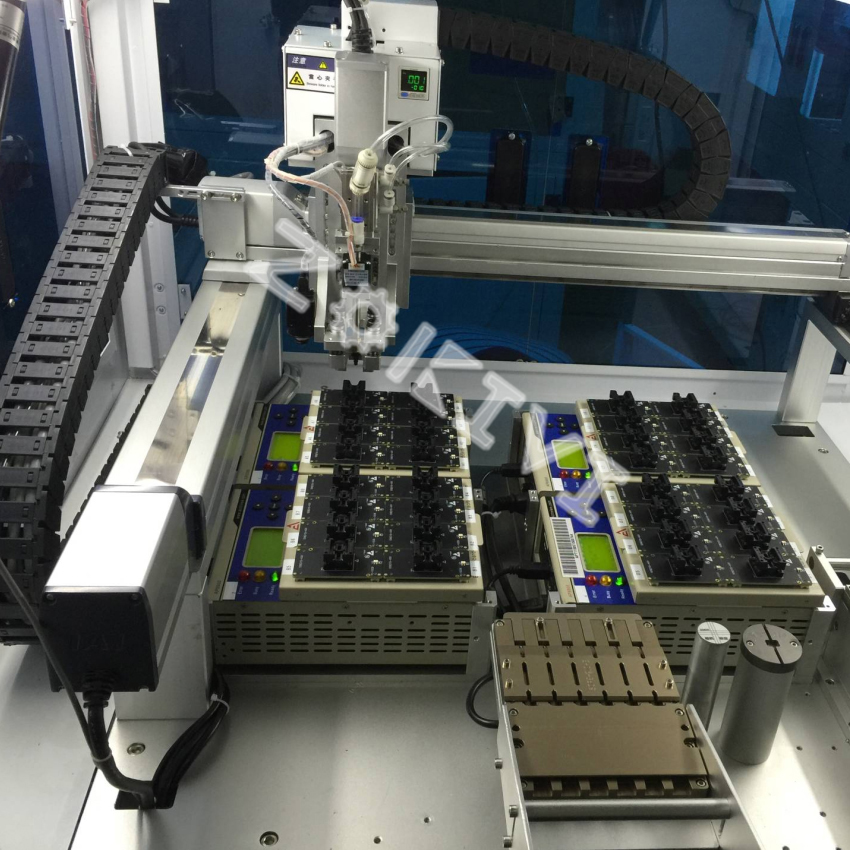

It can burn and test 1-32 chips at a time. One hour production capacity can reach 1300 + 200 UPH.

Automatic alarm, abnormal condition or burning completion of the machine will automatically alarm reminder function. Special Receiving Zone for Bad Products

Imported parts are used to ensure the service life and working stability of the equipment.

The Chinese-English menu is displayed on the touch screen with a friendly user interface.

It is suitable for the burning of many ICs and has a wide range of applications.


Details

This product is mainly used for testing/packaging conversion/identification of IC (integrated circuit)

Testable items

IC TYPE:MCU,FLASH,EMMC,NAND FLASH,EPROM,Wait...

IC ENCAPSULATION:SOP,SSOP,TSSOP,MSOP,QFP,QFN,BGA,TQFP,LQFP,Wait...

IC Packing:TubeTape


      technical specifications

Product model

ZL808-C

Machine architecture

Longmen architecture

Fastest speed

1300±200UPH

  Accuracy of fetching and placing repetition

+/-0.02mm

Travel range

X630mmY400mmZ50mm

Machine size

1400×800×1300mm

weight

130KG

Soket Fetch and release mode

Z axis Press/Cylinder press cap

Suction nozzle

Single suction nozzle rotatable

Control system

PLC

Workstation

0-32Workstation optional

Power/Gas Source

220V,50Hz/0.5MPa

Suitable for IC packaging

SOP/QFN/BGA/QFP,All encapsulated IC

Suitable for programming

AP80007500、Max Wiz、SOFI、Wait
